ISO30 Taper Spindle Runout Precision Test Bars Arbors with HSD Type Pull Stud
This precision test bar is a kind of popular ATC calibration tools. It is ISO30 taper spindle runout test bar/ arbor. It comes with HSD type pull stud, for HSD type ISO30 auto tool changer spindle runout calibration.
ISO30 Spindle Runout Test Bar Parameters:
Concentricity <0.002 mm
Cylindricity <0.003 mm
Arbor diameter is 32mm
Calibrated gage length 250mm
HSD type ISO30 pull stud (retention knob) include
Made from alloy steel hardened to 54 – 56HRC
Calibration certificate is included
Protective case included
This test arbor is suitable for calibrating your machine ISO30 ATC spindle
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check.
The calibration arbor helps identify excessive slop or axial play early on, a factor that will greatly reduce machine performance and lead to excessive tool wear and breakage. Regular spindle inspection and calibration will ultimately reduce downtime and prevent costly repairs of the machine tool spindle and related bearings over the long term.
RicoCNC supplies a range of spindle calibration arbors, such as ISO30, BT30, BT40, BT50, HSK63F, HSK63A, HSK100A, HSK50, HSK40, HSK32, HSK25 etc.
If any needs of CNC toolings or machine spare parts, welcome to contact us.
Please check our website:
CNC woodworking machine tools: https://www.woodworkingmachineparts.com
Automation parts: https://ricoautomation.com
CNC spare parts: https://www.cncsparetools.com
CNC router tools: https://cncwoodworkingtools.com
Linear Motion and Motor system: https://qingonggroup.com
CNC spindle motors: https://spindlemotorshop.com
more websites!
if you can not find it, please get in touch with us for more information!
|
|

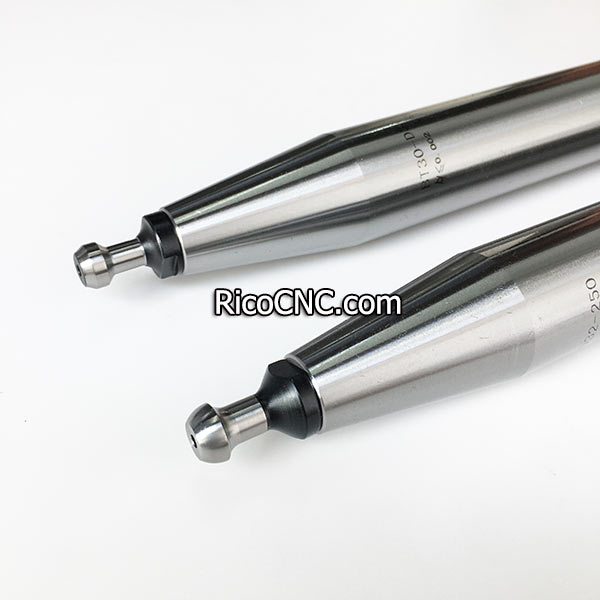

ISO30 Taper Spindle Runout Precision Test Bars Arbors with HSD Type Pull Stud Images
|
